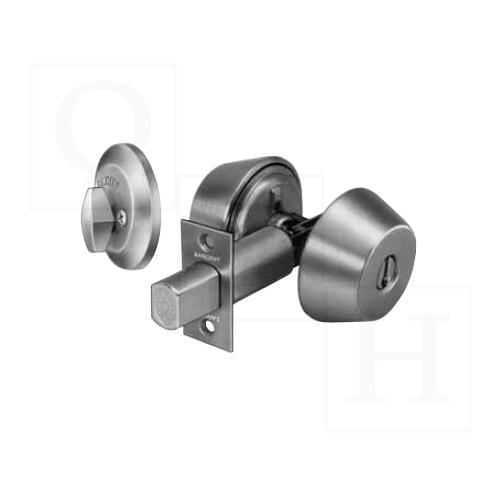

Sargent 484-SC-US26D Grade 1 Deadbolt, Double Cylinder w/Deadbolt, Schlage Keyway, Satin Chrome

Regular price $253.31

Tax included. Shipping calculated at checkout.

Sargent 484, 485, 487, 489
480 Series Deadbolt
Grade 1 - Heavy Duty


For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) thick standard For doors over 1-3/4" (44mm) consult factory (2-1/4" Thick door max)
Door Prep: Fits 161 (standard) cut outs and Fits 160 with 2-3/8" (60mm) backset with 1"(25mm) front and for 1-3/8"(35mm) thick door
Backsets: 2-3/4" (70mm) standard. 2-3/8" (60mm) optional (20- option)
Strike: Wrought brass, bronze or stainless steel
Bolt: Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw
Cylinder: Brass, 6-pin. 2 nickel silver keys
Masterkeying: Can be masterkeyed. Construction key system available
Front: Wrought brass, bronze or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
Hand: Non handed, field reversible
Turn Lever: Non-ferrous
Housing: Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter
LFIC options: housing brass & zinc, two piece.
Concealed screws on double cylinder function
Mechanical Options: 16- 400 T shaped strike with strike box
20- 2-3/8" (60mm) backset. 2-3/4" (70mm) x 1" (25mm) wide front
28- 408 Flat lip strike ANSI A115.2
36- 6-Lobe security Head Screw
37- Spanner Head Screw
48- 488 Reinforced strike with 4 mounting screws and strike box


ANSI: Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
UL: UL listed to U.S. and Canadian safety standards
Conforms to standards UL 10C and UBC 7-2 (1997)
